Scorpio LW (Surveillance)

Specially designed for long range applications and detecting fast moving targets
Download datasheet

High sensitivity (<15mK)

Compact

High resolution

Low power consumption

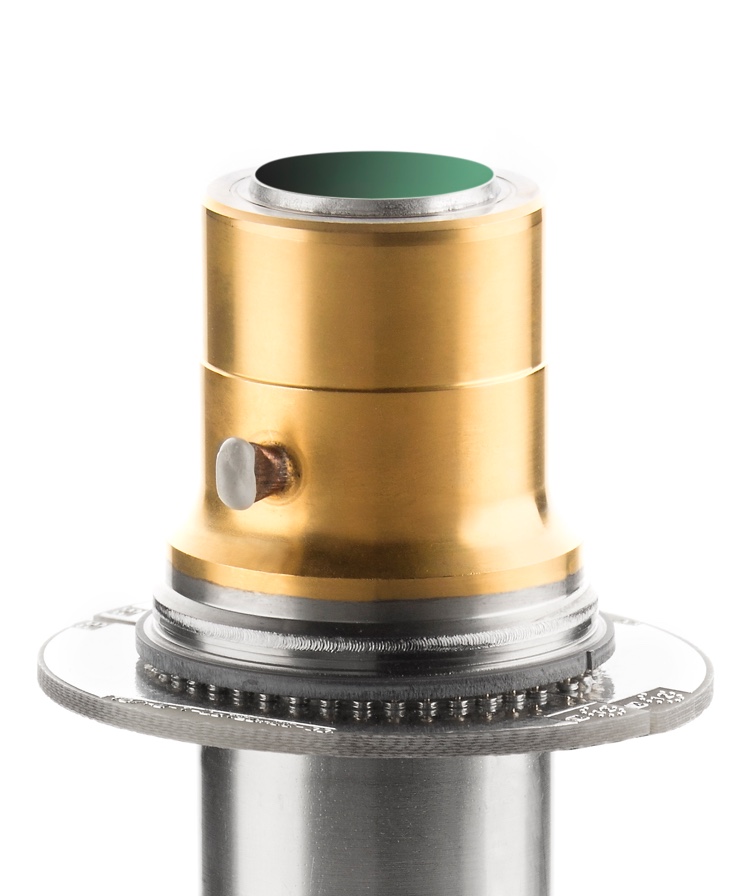

Scorpio LW is a compact high resolution LWIR detector specially designed for long range applications and detecting fast
moving targets. Built on proven technology, its low power consumption is well-suited to surveillance applications.

Features

  • NETD

    22mK (f/2, 210 Hz) ; 10 mK (f/2 ; 30 Hz post acc. \ 4 frames)

  • FPA operating temperature

    Up to 90 K

  • Charge handling capacity

    13.6 106 e- (standard), 27.2 106 e- (binning)

  • Frame rate

    Up to 210 Hz full frame rate

  • Array operability

    99.8%

  • available with following coolers

    K508, RM3, LSF
